ABS Compound is made of ABS resin mixed with various types of additives and reinforcements in different formulas to meet specific characteristics of plastic end products. Fridge Vacuum Siddh Chemiplast currently provides customers several types of ABS compounds, including: ABS flame retardant compound (ABS-FR) ABS antistatic compound (ABS-antistatic) ABS glass fiber compound (ABS-GF) ABS metallic coloured compound.
ABS metallic coloured compound is an ABS engineering
plastic compound with metallic colours.It provides end
products with clear, distinctive metallic colours.

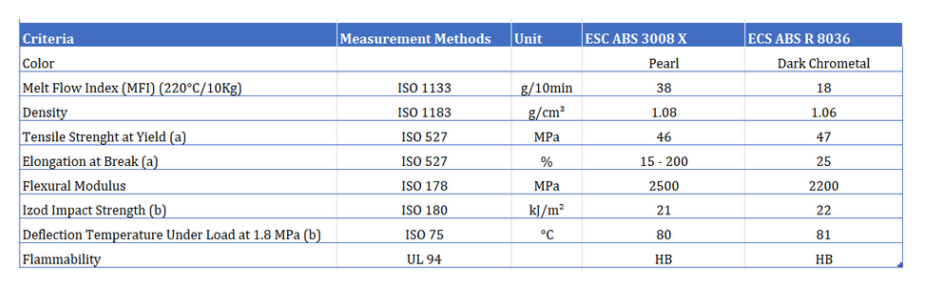

| Criteria | Measurement Methods | Unit | ESC ABS 3008 X | ECS ABS R 8036 |
|---|---|---|---|---|
| Colour | Pearl | Dark Chrometal | ||
| Melt Flow Index (MFI) (220°C/10Kg) | ISO 1133 | g/10min | 38 | 18 |
| Density | ISO 1183 | g/cm³ | 1.08 | 1.06 |
| Tensile Strenght at Yield (a) | ISO 527 | MPa | 46 | 47 |
| Elongation at Break (a) | ISO 527 | % | 15 - 200 | 25 |
| Flexural Modulus | ISO 178 | MPa | 2500 | 2200 |
| Izod Impact Strength (b) | ISO 180 | kJ/m² | 21 | 22 |
| Deflection Temperature Under Load at 1.8 MPa (b) | ISO 75 | °C | 80 | 81 |
| Flammability | UL 94 | HB | HB |
ABS-FR compound is made of ABS resin and flame retardants, which are in different fire resistance levels according to UL94 standard, including: V0, V1, and V2.

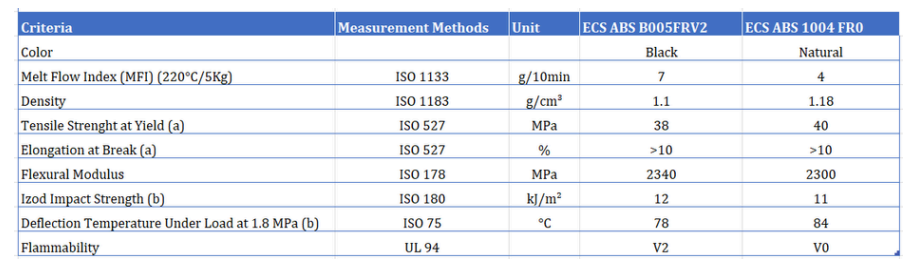

| Criteria | Measurement Methods | Unit | ECS ABS B005FRV2 | ECS ABS 1004 FR0 |
|---|---|---|---|---|
| Colour | Black | Natural | ||
| Melt Flow Index (MFI) (220°C/5Kg) | ISO 1133 | g/10min | 7 | 4 |
| Density | ISO 1183 | g/cm³ | 1.1 | 1.18 |
| Tensile Strenght at Yield (a) | ISO 527 | MPa | 38 | 40 |
| Elongation at Break (a) | ISO 527 | % | >10 | >10 |
| Flexural Modulus | ISO 178 | MPa | 2340 | 2300 |
| Izod Impact Strength (b) | ISO 180 | kJ/m² | 12 | 11 |
| Deflection Temperature Under Load at 1.8 MPa (b) | ISO 75 | °C | 78 | 84 |
| Flammability | UL 94 | V2 | V0 |
ABS-antistatic compound is a combination of ABS resin and carbon black conductive or antistatic additive. This material has good mechanical properties and conductivity.

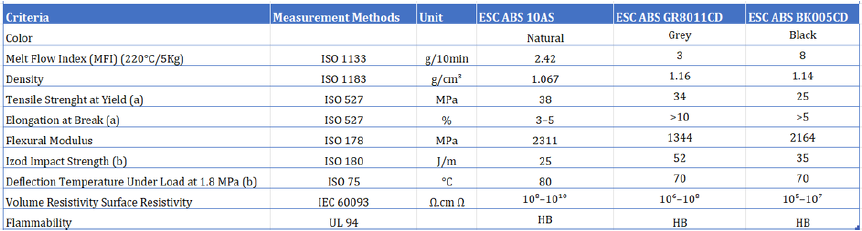

| Criteria | Measurement Methods | Unit | ESC ABS 10AS | ESC ABS GR8011CD | ESC ABS BK005CD |
|---|---|---|---|---|---|
| Colour | Natural | Grey | Black | ||
| Melt Flow Index (MFI) (220°C/5Kg) | ISO 1133 | g/10min | 2.42 | 3 | 8 |
| Density | ISO 1183 | g/cm³ | 1.067 | 1.16 | 1.14 |
| Tensile Strenght at Yield (a) | ISO 527 | MPa | 38 | 34 | 25 |
| Elongation at Break (a) | ISO 527 | % | 3 - 5 | >10 | >5 |
| Flexural Modulus | ISO 178 | MPa | 2311 | 1344 | 2164 |
| Izod Impact Strength (b) | ISO 180 | J/m | 25 | 52 | 35 |
| Deflection Temperature Under Load at 1.8 MPa (b) | ISO 75 | °C | 80 | 70 | 70 |
| Volume Resistivity Surface Resistivity | IEC 60093 | Ω.cm Ω | 10⁹ - 10¹¹ | 10⁶ - 10⁹ | 10⁵ - 10⁷ |
| Flammability | UL 94 | HB | HB | HB |
ABS-GF compound is a mixture of ABS resin and glass fiber.It provides end products with high rigidity, heat deflection temperature (HDT) and softening temperature (VICAT) improvement.

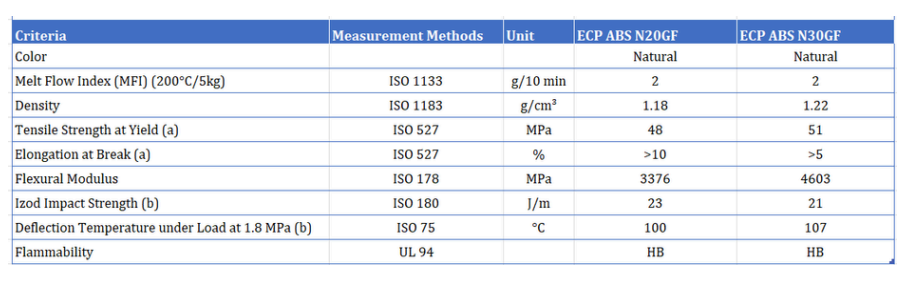

| Criteria | Measurement Methods | Unit | ECP ABS N20GF | ECP ABS N30GF |
|---|---|---|---|---|
| Colour | Natural | Natural | ||
| Melt Flow Index (MFI) (200°C/5kg) | ISO 1133 | g/10 min | 2 | 2 |
| Density | ISO 1183 | g/cm³ | 1.18 | 1.22 |
| Tensile Strength at Yield (a) | ISO 527 | MPa | 48 | 51 |
| Elongation at Break (a) | ISO 527 | % | >10 | >5 |
| Flexural Modulus | ISO 178 | MPa | 3376 | 4603 |
| Izod Impact Strength (b) | ISO 180 | J/m | 23 | 21 |
| Deflection Temperature under Load at 1.8 MPa (b) | ISO 75 | °C | 100 | 107 |
| Flammability | UL 94 | HB | HB |
