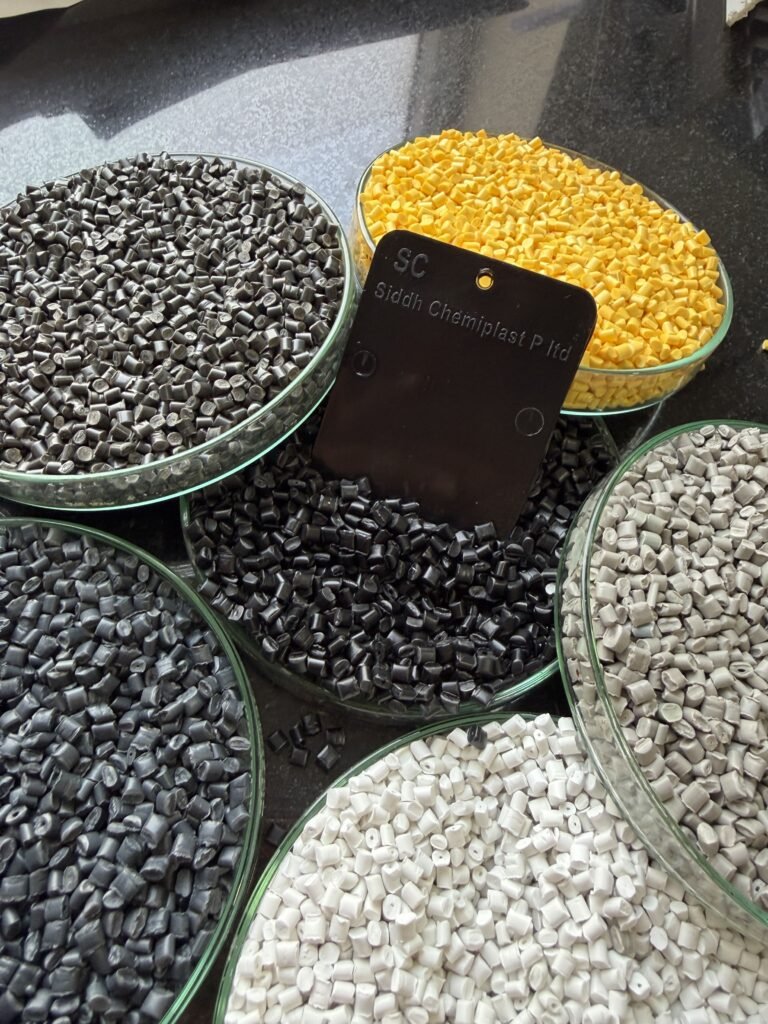

PP Compound is made of polypropylene (PP) resin mixed with various additives and reinforcements in specific formulas to meet characteristics of each end product. Siddh Chemiplast offers a series of PP compounds, includ- ing: PP glass fiber compound (PP-GF) PP glass bead compound (PP-GB) PP talc powder compound (PP-TALC) PP BaSO4 compound (PP-BaSO4 PP conductive compound (PP-Conductive) PP flame retardant compound (PP-FR) PP compound for laser marking
Thanks to the use of glass fiber as the reinforcement, PP-GF compound increases stiffness, reduces shrinkage, improves impact strength and enhances heat resistance of end products.

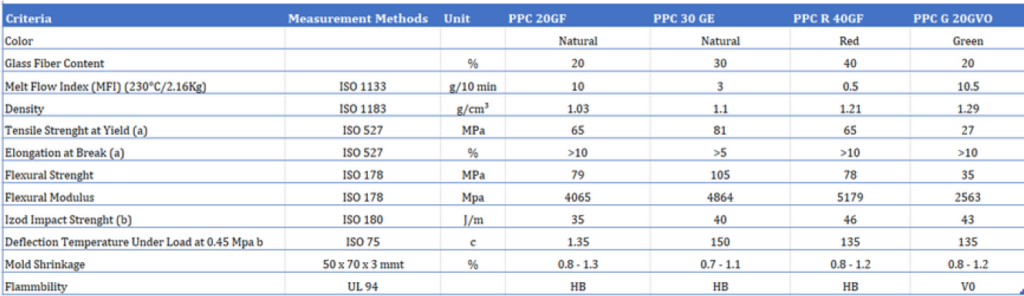

| Criteria | Measurement Methods | Unit | PPC 20GF | PPC 30 GE | PPC R 40GF | PPC G 20GVO |
|---|---|---|---|---|---|---|
| Colour | Natural | Natural | Red | Green | ||
| Glass Fiber Content | % | 20 | 30 | 40 | 20 | |
| Melt Flow Index (MFI) (230°C/2.16Kg) | ISO 1133 | g/10 min | 10 | 3 | 0.5 | 10.5 |
| Density | ISO 1183 | g/cm³ | 1.03 | 1.1 | 1.21 | 1.29 |
| Tensile Strenght at Yield (a) | ISO 527 | MPa | 65 | 81 | 65 | 27 |
| Elongation at Break (a) | ISO 527 | % | >10 | >5 | >10 | >10 |
| Flexural Strenght | ISO 178 | MPa | 79 | 105 | 78 | 35 |
| Flexural Modulus | ISO 178 | Mpa | 4065 | 4864 | 5179 | 2563 |
| Izod Impact Strenght (b) | ISO 180 | J/m | 35 | 40 | 46 | 43 |
| Deflection Temperature Under Load at 0.45 Mpa b | ISO 75 | c | 1.35 | 150 | 135 | 135 |
| Mold Shrinkage | 50 x 70 x 3 mmt | % | 0.8 - 1.3 | 0.7 - 1.1 | 0.8 - 1.2 | 0.8 - 1.2 |
| Flammability | UL 94 | HB | HB | HB | V0 |
PP-TALC compound is reinforced with talc powder. This compound offers several benefits to end products, such as enhancing hardness, flexural modulus and flexural strength, increasing thermal durability, lifting facial stiffness and decreasing mold shrinkage.

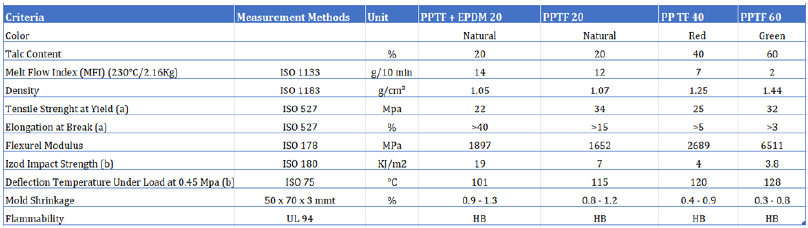

| Criteria | Measurement Methods | Unit | PPTF + EPDM 20 | PPTF 20 | PP TF 40 | PPTF 60 |
|---|---|---|---|---|---|---|
| Colour | Natural | Natural | Red | Green | ||
| Talc Content | % | 20 | 20 | 40 | 60 | |
| Melt Flow Index (MFI) (230°C/2.16Kg) | ISO 1133 | g/10 min | 14 | 12 | 7 | 2 |
| Density | ISO 1183 | g/cm³ | 1.05 | 1.07 | 1.25 | 1.44 |
| Tensile Strenght at Yield (a) | ISO 527 | Mpa | 22 | 34 | 25 | 32 |
| Elongation at Break (a) | ISO 527 | % | >40 | >15 | >5 | >3 |
| Flexural Modulus | ISO 178 | MPa | 1897 | 1652 | 2689 | 6511 |
| Izod Impact Strength (b) | ISO 180 | KJ/m2 | 19 | 7 | 4 | 3.8 |
| Deflection Temperature Under Load at 0.45 Mpa (b) | ISO 75 | °C | 101 | 115 | 120 | 128 |
| Mold Shrinkage | 50 x 70 x 3 mmt | % | 0.9 - 1.3 | 0.8 - 1.2 | 0.4 - 0.9 | 0.3 - 0.8 |
| Flammability | UL 94 | HB | HB | HB | HB |
PP-BASO4 is a combination of polypropylene (PP) resin, BaSO4 andspecific additives. It increases glossiness, stiffness and minimizes the level of shrinkage and thermal deformation of end products.

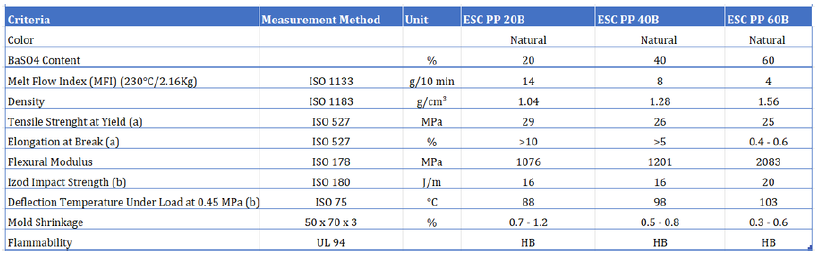

| Criteria | Measurement Method | Unit | ESC PP 20B | ESC PP 40B | ESC PP 60B |
|---|---|---|---|---|---|
| Colour | Natural | Natural | Natural | ||
| BaSO4 Content | % | 20 | 40 | 60 | |
| Melt Flow Index (MFI) (230°C/2.16Kg) | ISO 1133 | g/10 min | 14 | 8 | 4 |
| Density | ISO 1183 | g/cm³ | 1.04 | 1.28 | 1.56 |
| Tensile Strenght at Yield (a) | ISO 527 | MPa | 29 | 26 | 25 |
| Elongation at Break (a) | ISO 527 | % | >10 | >5 | 0.4 - 0.6 |
| Flexural Modulus | ISO 178 | MPa | 1076 | 1201 | 2083 |
| Izod Impact Strength (b) | ISO 180 | J/m | 16 | 16 | 20 |
| Deflection Temperature Under Load at 0.45 MPa (b) | ISO 75 | °C | 88 | 98 | 103 |
| Mold Shrinkage | 50 x 70 x 3 | % | 0.7 - 1.2 | 0.5 - 0.8 | 0.3 - 0.6 |
| Flammability | UL 94 | HB | HB | HB |
PP compound for laser marking is a combination of PP resin and laser marking additives. It helps end products to be easily laser printed.

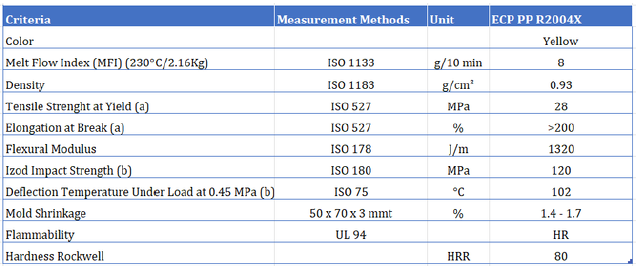

| Criteria | Measurement Methods | Unit | ECP PP R2004X |
|---|---|---|---|
| Colour | Yellow | ||
| Melt Flow Index (MFI) (230°C/2.16Kg) | ISO 1133 | g/10 min | 8 |
| Density | ISO 1183 | g/cm³ | 0.93 |
| Tensile Strenght at Yield (a) | ISO 527 | MPa | 28 |
| Elongation at Break (a) | ISO 527 | % | >200 |
| Flexural Modulus | ISO 178 | J/m | 1320 |
| Izod Impact Strength (b) | ISO 180 | MPa | 120 |
| Deflection Temperature Under Load at 0.45 MPa (b) | ISO 75 | °C | 102 |
| Mold Shrinkage | 50 x 70 x 3 mmt | % | 1.4 - 1.7 |
| Flammability | UL 94 | HR | |
| Hardness Rockwell | HRR | 80 |

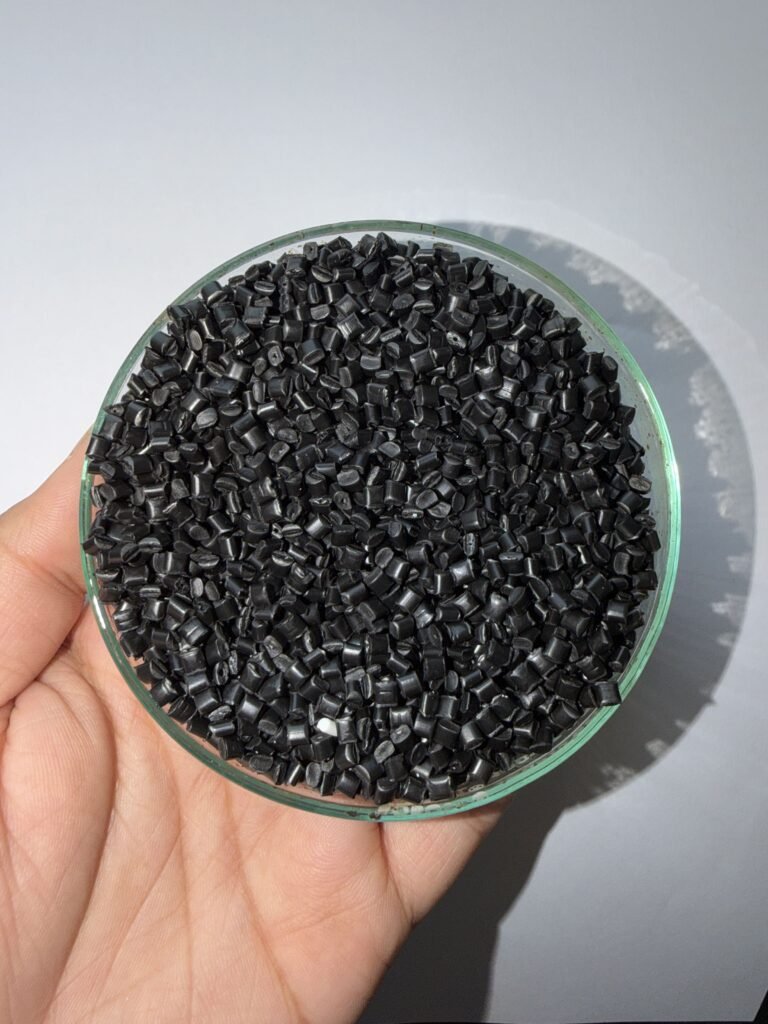

PP-CONDUCTIVE is a mixture of polypropylene (PP) resin and carbon black conductive as the reinforcement. This material offers a higher level of stability compared to standard PP resin and accelerates end products’ conductivity.

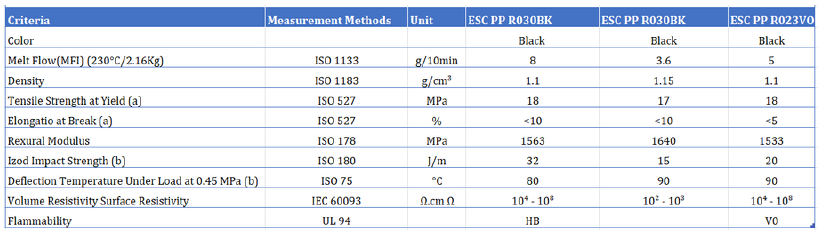

| Criteria | Measurement Methods | Unit | ESC PP R030BK | ESC PP R030BK | ESC PP R023VO |
|---|---|---|---|---|---|
| Colour | Black | Black | Black | ||
| Melt Flow (MFI) (230°C/2.16Kg) | ISO 1133 | g/10min | 8 | 3.6 | 5 |
| Density | ISO 1183 | g/cm³ | 1.1 | 1.15 | 1.1 |
| Tensile Strength at Yield (a) | ISO 527 | MPa | 18 | 17 | 18 |
| Elongation at Break (a) | ISO 527 | % | <10 | <10 | <5 |
| Flexural Modulus | ISO 178 | MPa | 1563 | 1640 | 1533 |
| Izod Impact Strength (b) | ISO 180 | J/m | 32 | 15 | 20 |
| Deflection Temperature Under Load at 0.45 MPa (b) | ISO 75 | °C | 80 | 90 | 90 |
| Volume Resistivity Surface Resistivity | IEC 60093 | Ω.cm Ω | 10⁴ - 10⁸ | 10² - 10³ | 10⁴ - 10⁸ |
| Flammability | UL 94 | HB | VO |
The main components of PP-FR compound are polypropylene (PP) resin and halogen/non-halogen flame retardant. Depending on the customer’s requirements, PP-FR compound has different levels of flame retardancy according to UL94-standard, including: 5VA, 5VB, V0, V1, V2.

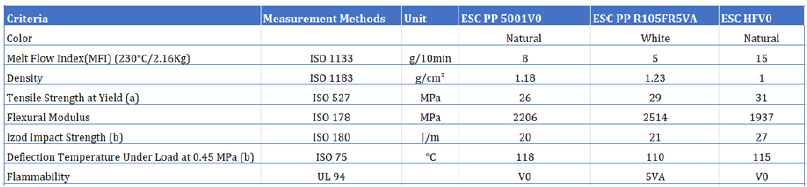

| Criteria | Measurement Methods | Unit | ESC PP 5001V0 | ESC PP R105FR5VA | ESC HFV0 |
|---|---|---|---|---|---|
| Colour | Natural | White | Natural | ||
| Melt Flow Index(MFI) (230°C/2.16Kg) | ISO 1133 | g/10min | 8 | 5 | 15 |
| Density | ISO 1183 | g/cm³ | 1.18 | 1.23 | 1 |
| Tensile Strength at Yield (a) | ISO 527 | MPa | 26 | 29 | 31 |
| Flexural Modulus | ISO 178 | MPa | 2206 | 2514 | 1937 |
| Izod Impact Strength (b) | ISO 180 | J/m | 20 | 21 | 27 |
| Deflection Temperature Under Load at 0.45 MPa (b) | ISO 75 | °C | 118 | 110 | 115 |
| Flammability | UL 94 | V0 | 5VA | V0 |
